Digital Temperature Controller

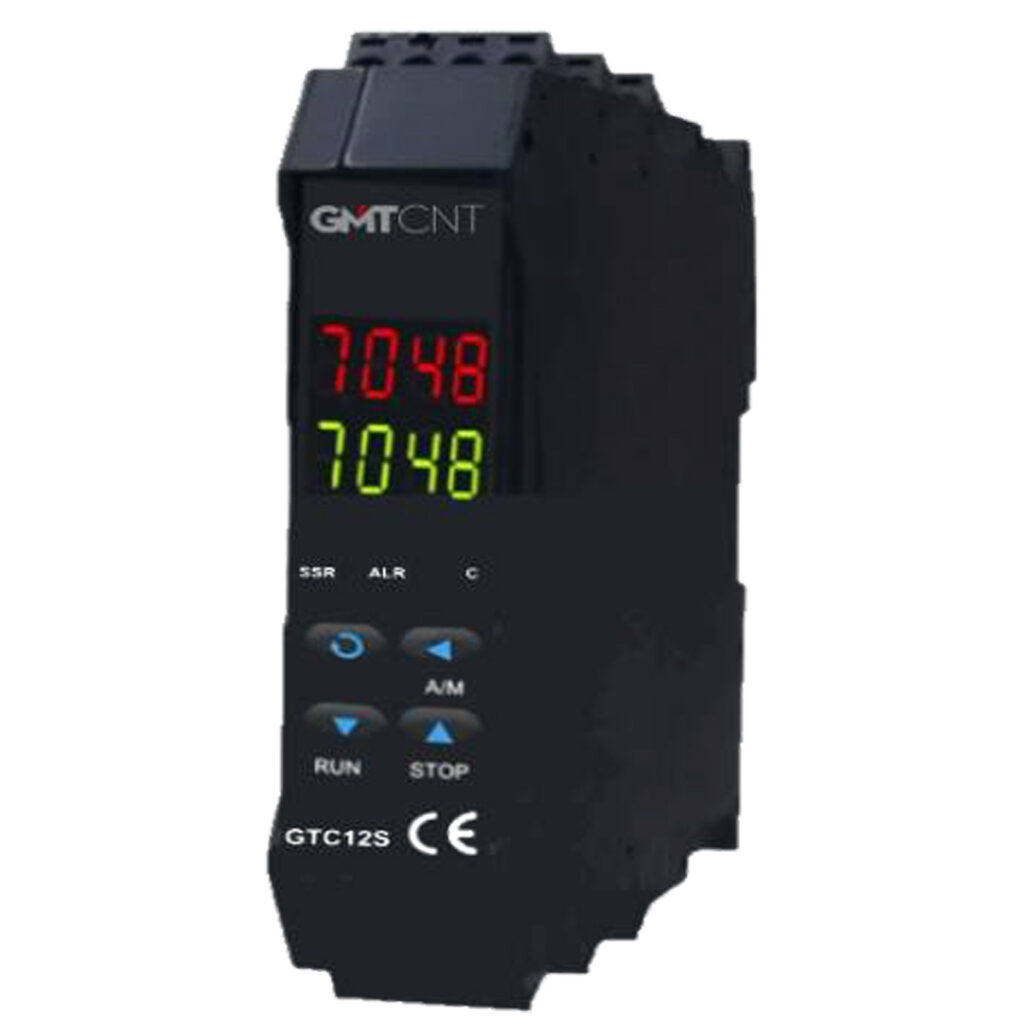

GTC12S – Temperature Controller
• Digital calibration technology for input measurement
• Various thermocouple and RTD support
• Auto tuning (AT) control
• DIN rail mounting
• User-friendly operation interface
• It can be easily adapted to your panels with 24VDC supply.
• Enhanced anti-jamming capability for operation in adverse industrial environments
Technical Specifications
Feed : 24VDC, -15%, +10%.
Power consumption : ≤5W
Supported Sensor Types: Thermocouple: K, S, R, E, J, T, B, N, WRe3-WRe25, WRe5-WRe26,Cu50, Pt100
DC Voltage : 0 ~ 5V, 1 ~ 5V, 0 ~ 1V, 0 ~ 100mV, 0 ~ 20mV, 0 ~ 500mV etc.
DC Current: 4 ~ 20mA (with 250 ohm shunt resistor)
Reading Range : K(-50~1300°C),S ve R (-50~1700°C),T(-200~+350°C),E(0~800°C),J(0~1000°C),B(200~1800°C),N(0~1300°C),Cu50(-50~+150°C), Pt100(-200~+600°C)
Measurement Accuracy : 0.25%FS ±1 measured unit
Control Period : 0.24~300.0 seconds can be selected, and this value should be integers of 0,5 seconds.
Control Mode : On-Off control mode (dead band adjustable). Fuzzy logic PID control, automatic tuning by AI-PID (advanced artificial intelligence algorithm).
Output Features: SSR Output: 12VDC/30mA (for driving SSR)
Sampling Period: It can take 8 samples per second. By setting the digital filter parameter FILt=0, the response time can be set to 0.5 seconds.
Function : Upper limit, lower limit, deviation upper limit, deviation lower limit.
Electromagnetic Compatibility (EMC): ±61000KV/4KHz per IEC4-4-5; 61000KV according to IEC4-5-4.
Insulation Withstand Voltage : ≥600V between terminals.
Work conditions : Temperature -10~60°C, Humidity ≤90%RH
Communication : Modbus RTU (RS485) 9600, 8, None, 1
