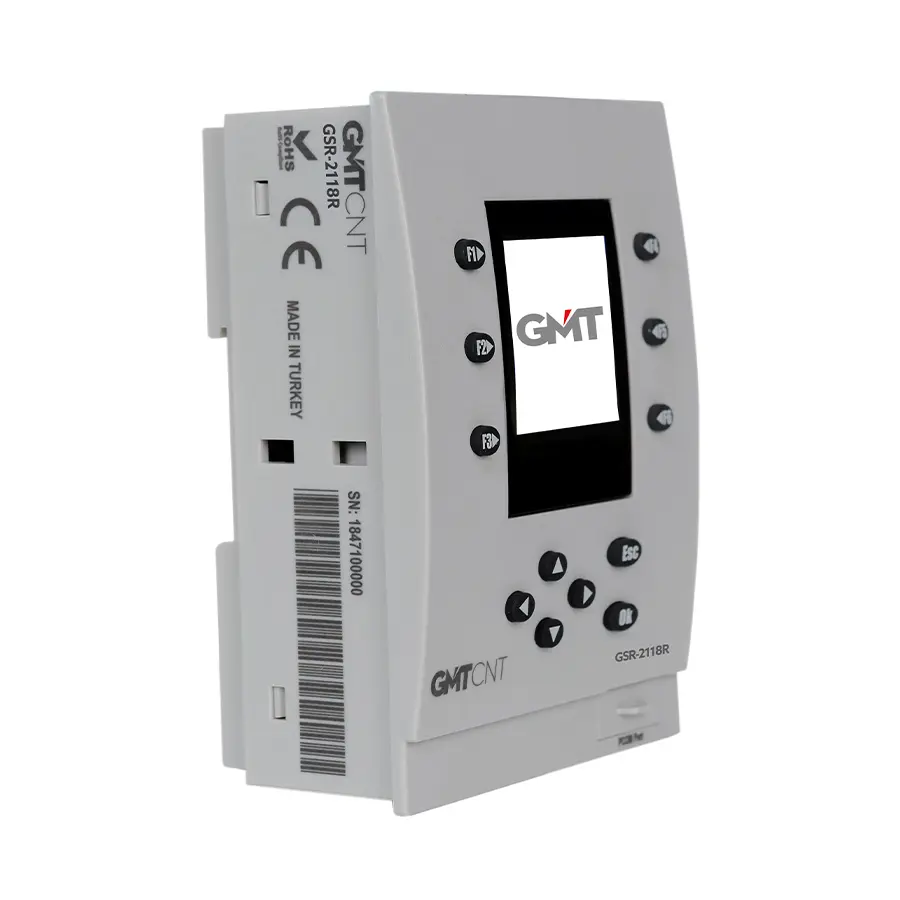

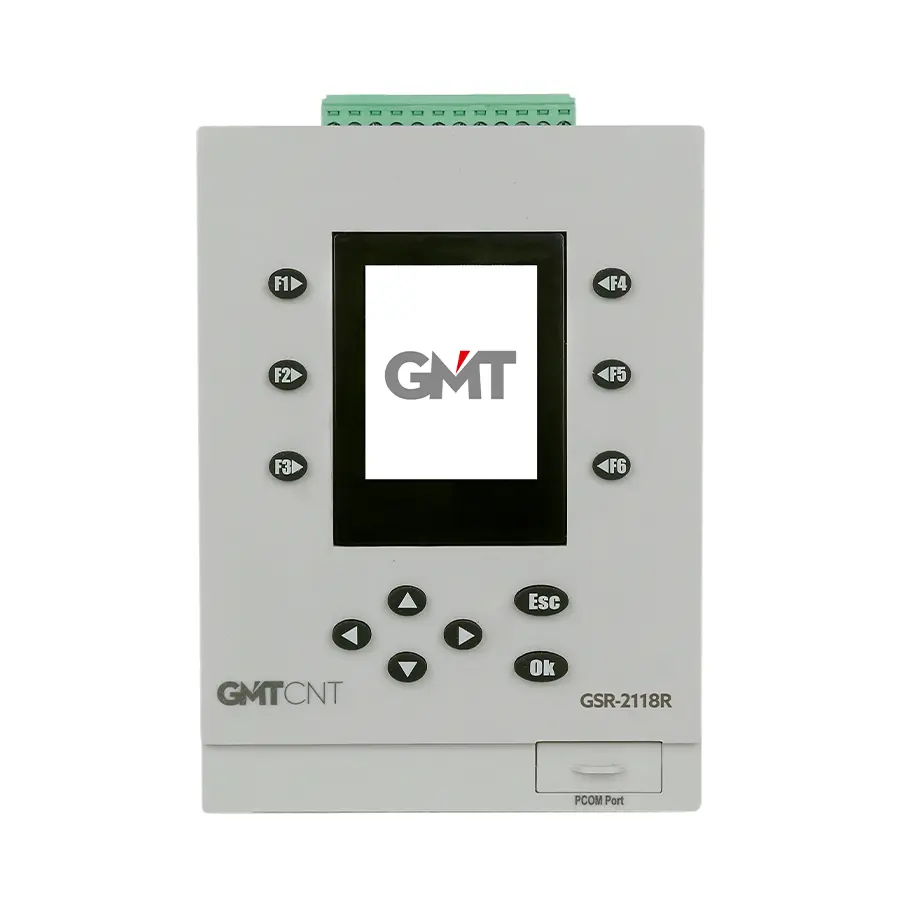

GSR-2118R
Domestically Produced Mini PLC with Display
24 VDC power supply.
1.8 inch color TFT LCD Display.
11 channels 24 V DC PNP digital or 0 to 10 V DC (12 Bit) Analog adjustable input.
8 channels 230 V AC 5A relay output.
196 kB program memory area.
Program upload via USB (with GSR-COM1 adapter).
Program upload with USB flash disk (with GSR-COM2 adapter).
Floating-point (decimal) arithmetic support.
Maximum 20 kHz program cycle speed.
RTC (Real Time Clock).
2 kHz High-Speed Counter Input (All Inputs).
6 programmable function keys.
DIN RAIL and Panel mounting.
Programmable with GMTSuite editor software.
Supply: 24 VDC (+/-15% tolerance).
Power Consumption: 3W max.
Program Cycle Speed: Maximum 20 kHz.
Programming Language: Graphical Ladder editor.
Commands: Logic, mathematical, time and counting relays, special purpose function blocks, display commands.
Certification: CE marked.
Digital Inputs: 11 channels 24 V DC PNP digital or 0 to 10 V DC (12 Bit) Analog adjustable input.
Digital Outputs: 8 channels 230 V AC 5A relay output.
Temperature: 0 degrees Celsius to +50 degrees Celsius (Non-freezing).
Humidity: 5% rH to 95% rH.
Environment: Must be used in an environment free of flammable and corrosive gases.
