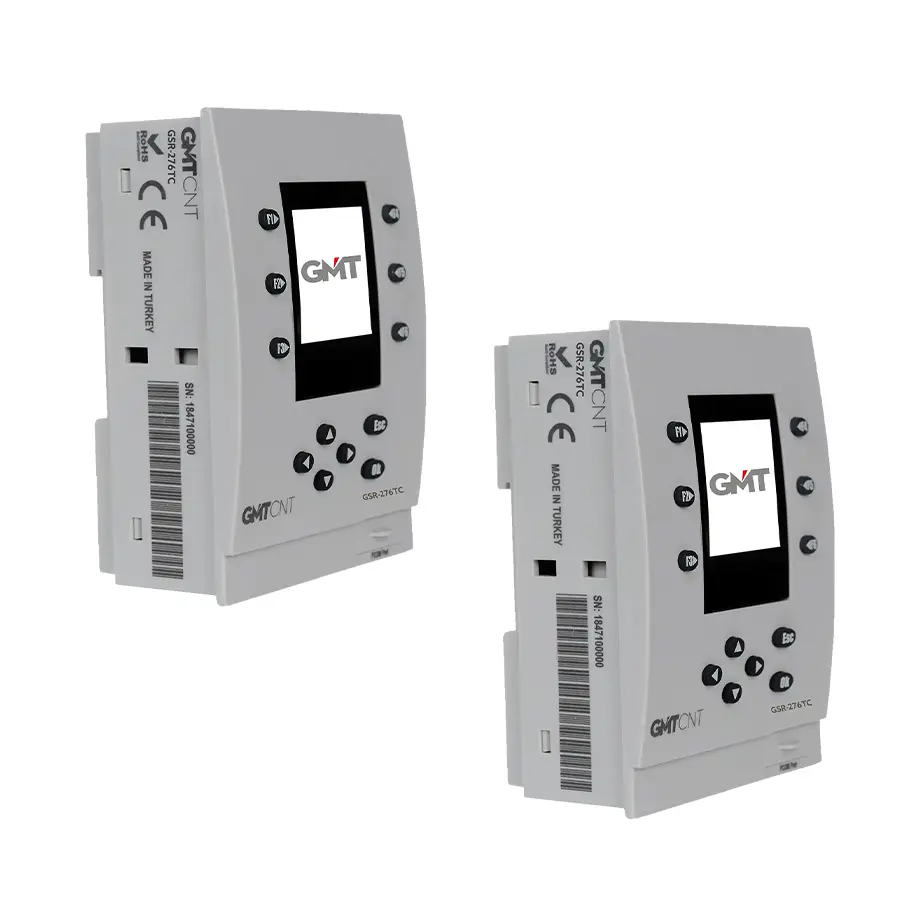

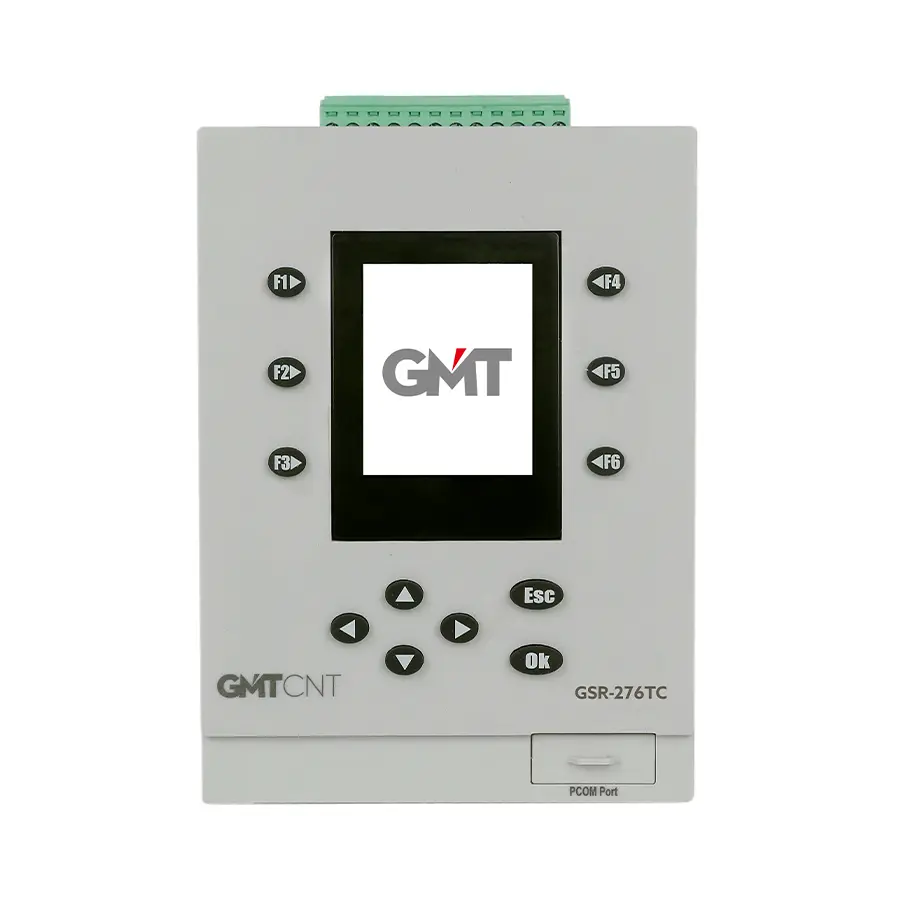

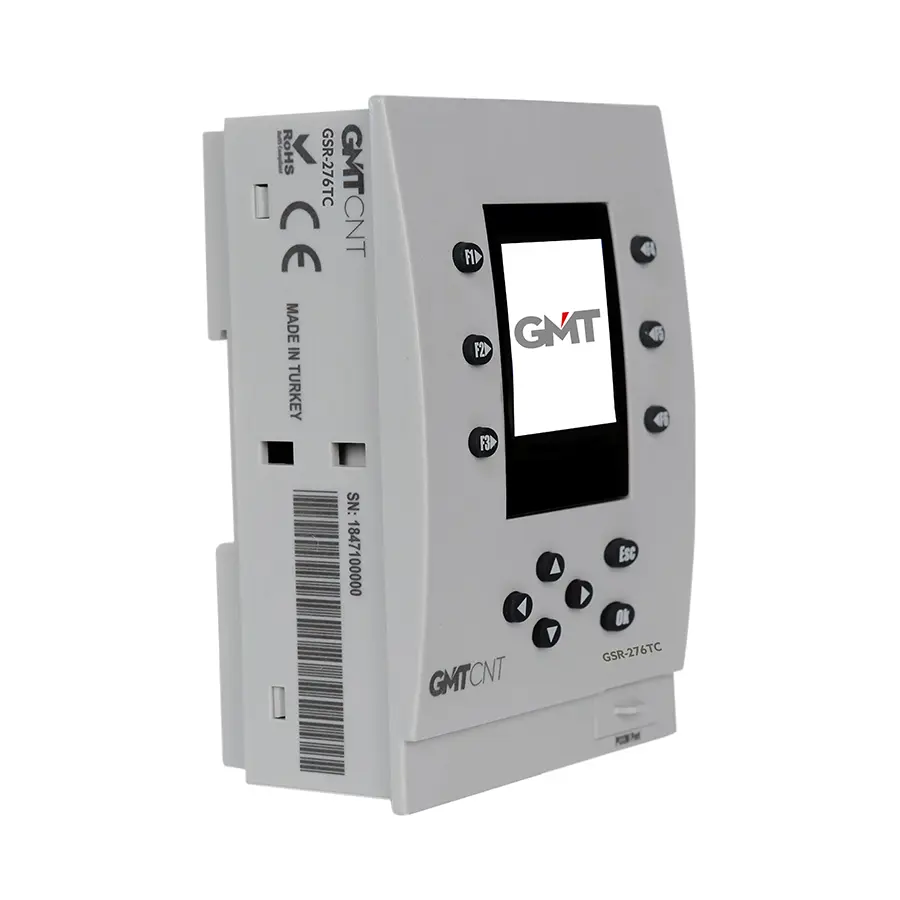

GSR-276TC
Domestically Produced Mini PLC with Display
24 VDC power supply
7 Channels Digital (PNP) Input / 2 Channels Thermocouple input
2 Relay Outputs (220 V AC @ 5A) and 4 Transistor Outputs (0.35A @ 24 VDC)
Short circuit and overload protection for transistor outputs
Built-in 1.8 inch 128 (RGB) x 160 TFT LCD color display
196 kB program / 10 kB variable memory
Maximum 20 kHz program cycle speed
Reverse polarity protection for power supply
Advanced new generation PID algorithm
Program upload via USB (with GSR-COM1 adapter)
Program upload via USB flash disk (with GSR-COM2 adapter)
RTC (Real Time Clock)
Maximum counting speed 2 kHz (50% duty cycle) on digital inputs
A total of 12 function keys, 6 of which are programmable
DIN RAIL and Panel mounting
Programmable with GMTSuite editor software
Supply: 24 VDC +/-10% tolerance)
Power Consumption: 3W max.
Program Cycle Speed: Maximum 20 kHz
Programming Language: Graphical Ladder editor
Commands: Logic, mathematical, time and counting relays, special purpose function blocks, display commands
Certification: CE marked
Digital Inputs: 7 Channels Digital (PNP) Input / 2 Channels Thermocouple input
Digital Outputs: 2 Relay Outputs (220 V AC @ 5A) and 4 Transistor Outputs (0.35A @ 24 VDC)
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to 60°C (Non-freezing)
Relative Humidity: 80% up to 30°C, then decreasing linearly to 50% at 50°C
