GXM-80IA Domestic PLC Expansion Module: 8 channels 24 VDC digital input, PNP/NPN isolated, compatible with GMTSuite. GXM-80IA Yerli PLC Genişleme Modülü: 8 kanal 24 VDC dijital giriş, PNP/NPN izolasyonlu, GMTSuite uyumlu.
GXM-80IA Domestic PLC Expansion Module: 8 channels 24 VDC digital input, PNP/NPN isolated, compatible with GMTSuite. GXM-80IA Yerli PLC Genişleme Modülü: 8 kanal 24 VDC dijital giriş, PNP/NPN izolasyonlu, GMTSuite uyumlu.
GXM-80IA Domestic PLC Expansion Module: 8 channels 24 VDC digital input, PNP/NPN isolated, compatible with GMTSuite. GXM-80IA Yerli PLC Genişleme Modülü: 8 kanal 24 VDC dijital giriş, PNP/NPN izolasyonlu, GMTSuite uyumlu.
GMTCNT

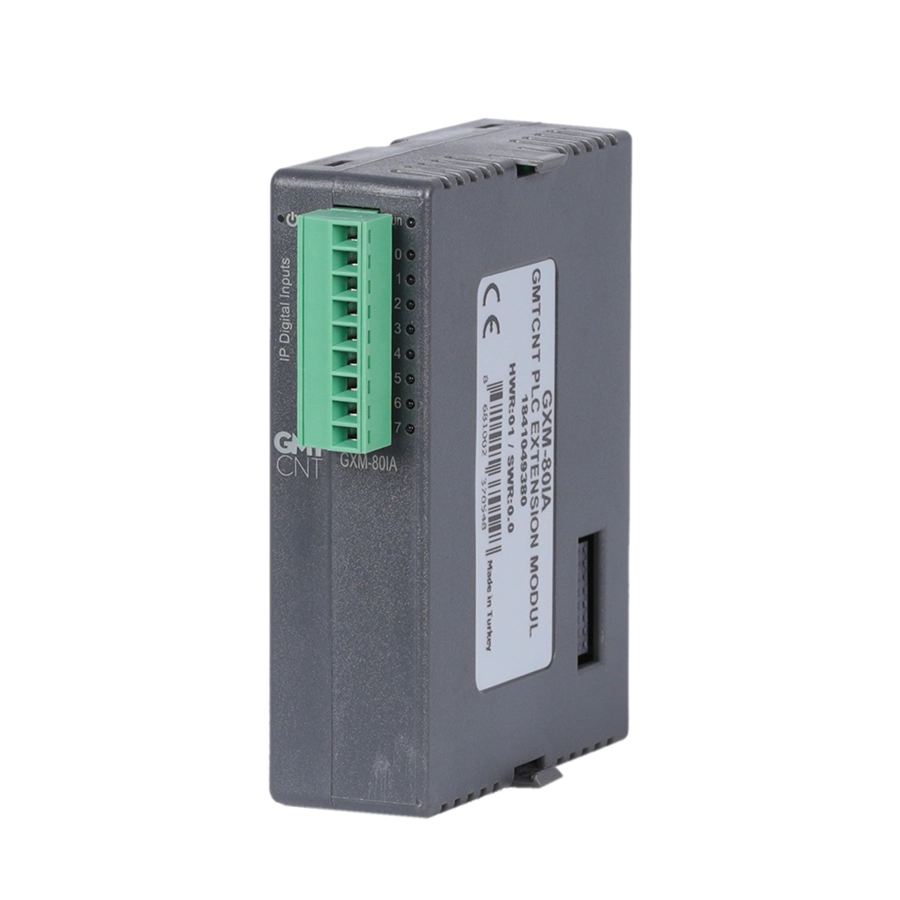

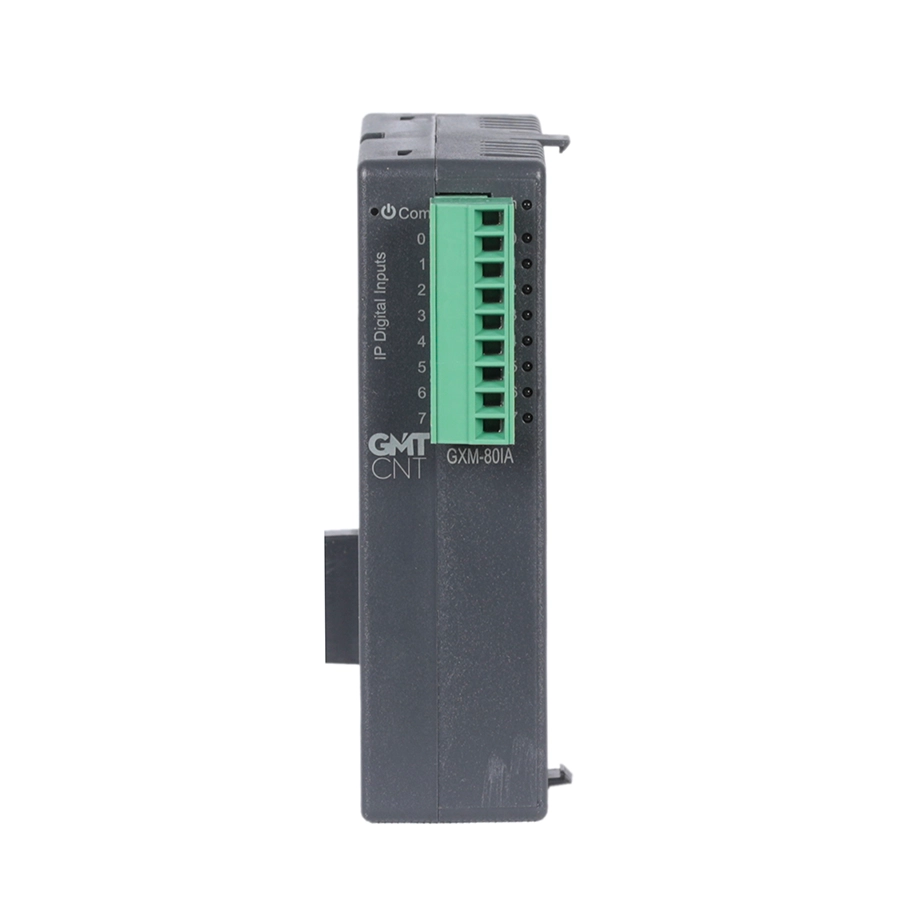

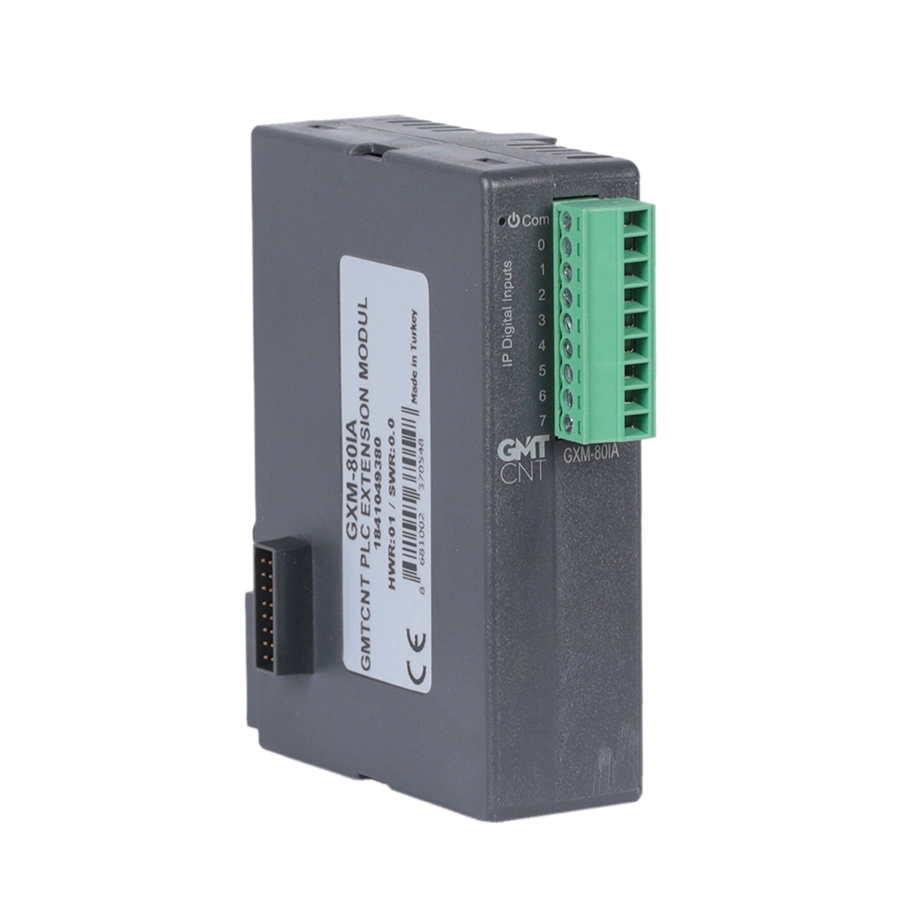

GXM-80IA

Domestically Produced Digital Modules – Expansion Modules

  • Compatible with GMTSuite software

  • It is a PLC expansion module

  • Used to increase the input/output capacity in installed systems

  • Operates only with the CPU, does not operate alone (standalone)

  • Has 8 channels of 24VDC digital input

  • Inputs are isolated and can be used as PNP or NPN

User Manual
3D Drawing File
EPLAN File
FeatureSpecification
SupplyInternal supply
Power ConsumptionMax. 1W
Mounting TypeDIN Rail
FeatureSpecification
Digital Inputs8 Channels
Input Type16.5… 26VDC PNP or NPN input
FrequencyMax. 500Hz

  • Temperature: 0°C to +60°C (Non-freezing)

  • Humidity: 5%rH to 95%rH (Non-condensing)

  • Environment: Must be used in environments free of flammable and corrosive gases
