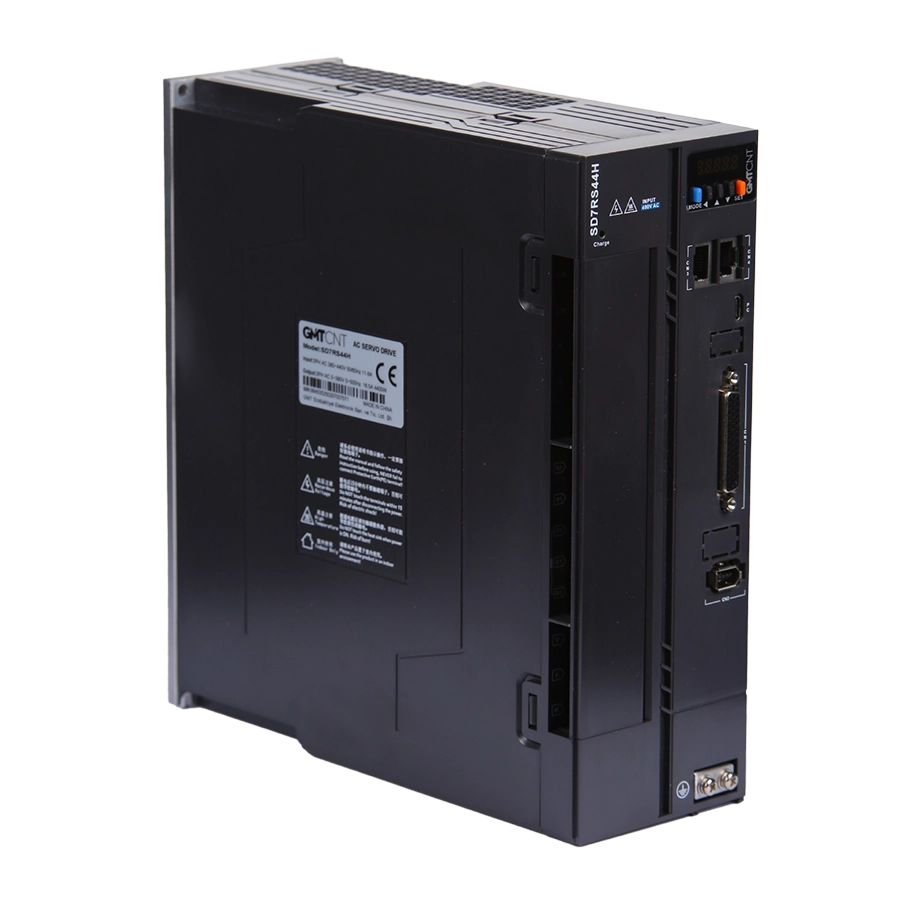

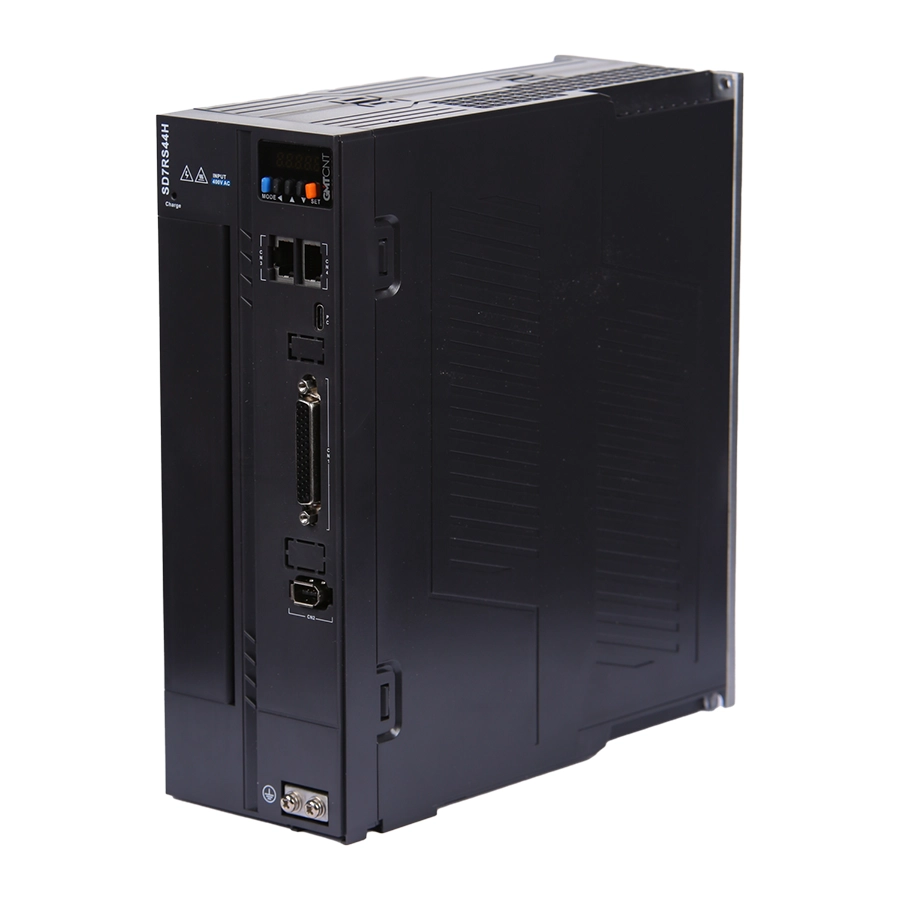

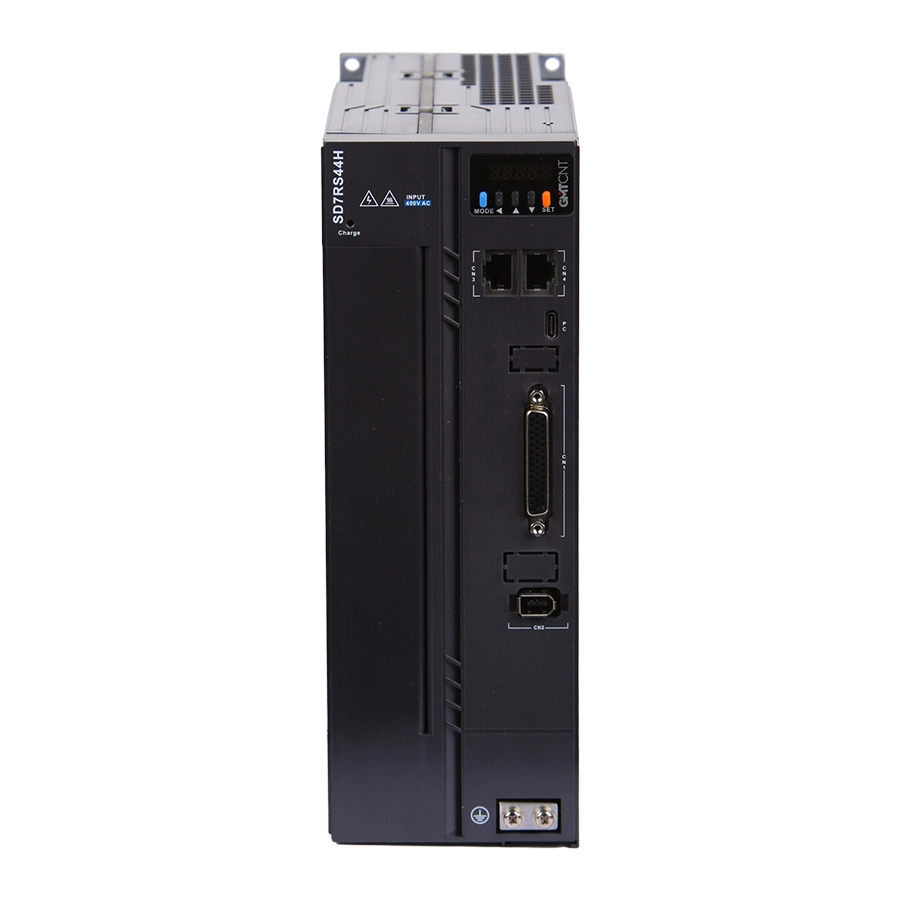

SD7RS44H SERVO DRIVE
SD7 Series Servo Systems offer solutions to machine manufacturers in testing equipment, presses, cutting, filling, packaging, plastics, food, etc., with their compact design, Position/Speed/Torque control modes, and high performance. They are user-friendly with automatic motor recognition, programming via USB port, and the Easytune feature.
SD7 Servo Drive Key Features
- Supply Voltage: Single-phase 380V -15%~+10% 50/60HZ or Three-phase 380V – 400V -15%~+10% 50/60HZ
- Power Range: 4400W
- Control Modes: Position/Speed/Torque Control modes
- Control Mode Switching: Feature to switch between control modes
- Ease of Adjustment: Easy adjustment, control flexibility
- Motor Recognition: Automatic motor type detection
- Communication: Modbus RTU / EtherCAT
- Encoder: 23bit Absolute Encoder
- Built-in Brake: Built-in brake resistor
- Parameter Setting: Parameter setting via PC software or built-in keypad and display
- Connection: USB Type-C connection port for PC
- Auto Tuning: Auto Tuning feature
- Speed Function: Zero speed tracking function
- Fault Analysis: Black box function for fault analysis
- Protection Functions: Overcurrent, overvoltage, undervoltage, overtemperature, overload, encoder error, overspeed protection functions
Inputs and Outputs
- Digital Inputs: 8 Digital inputs
- Digital Outputs: 5 Digital outputs
- Pulse Input Frequency: 5V (500kHz) / 24V (200kHz)
- Analog Inputs: 2 Analog Inputs (-10~+10VDC)
- Analog Output: 1 Analog Output (-10~+10VDC)
