SD7RS55H servo driver: An SD7 series product offering high efficiency and excellent motion control in systems requiring high power. SD7RS55H servo sürücü: Büyük güç gerektiren sistemlerde yüksek verim ve mükemmel hareket kontrolü sunan SD7 serisi ürün.
GMTCNT

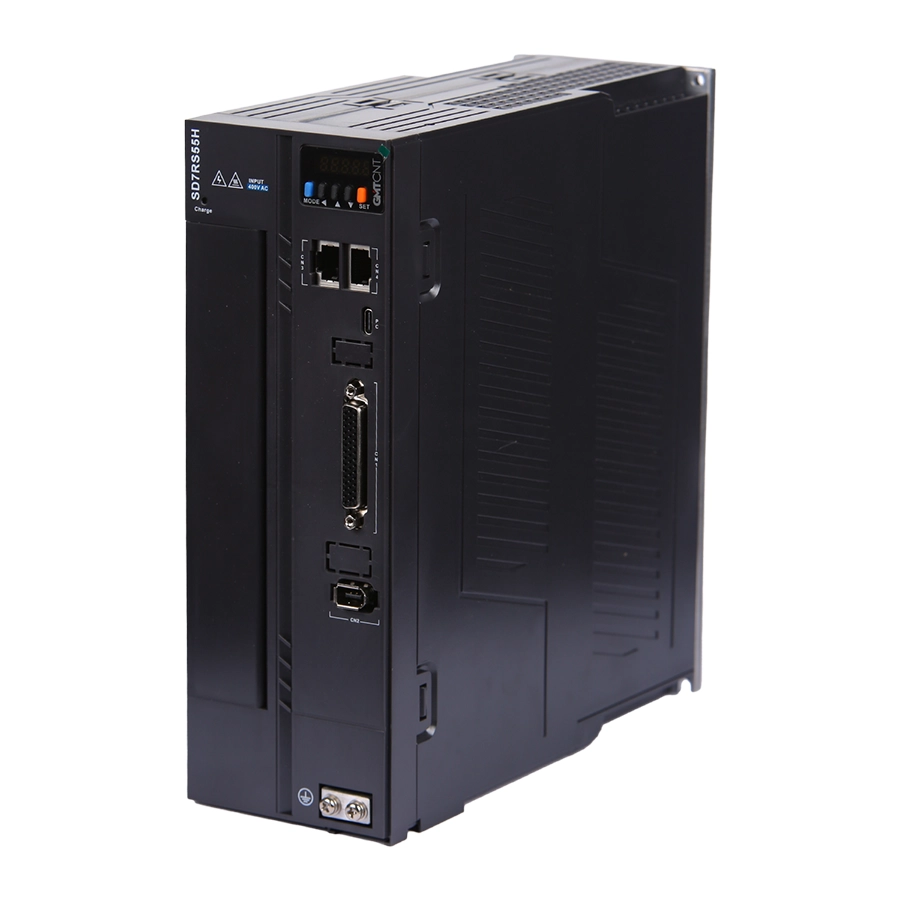

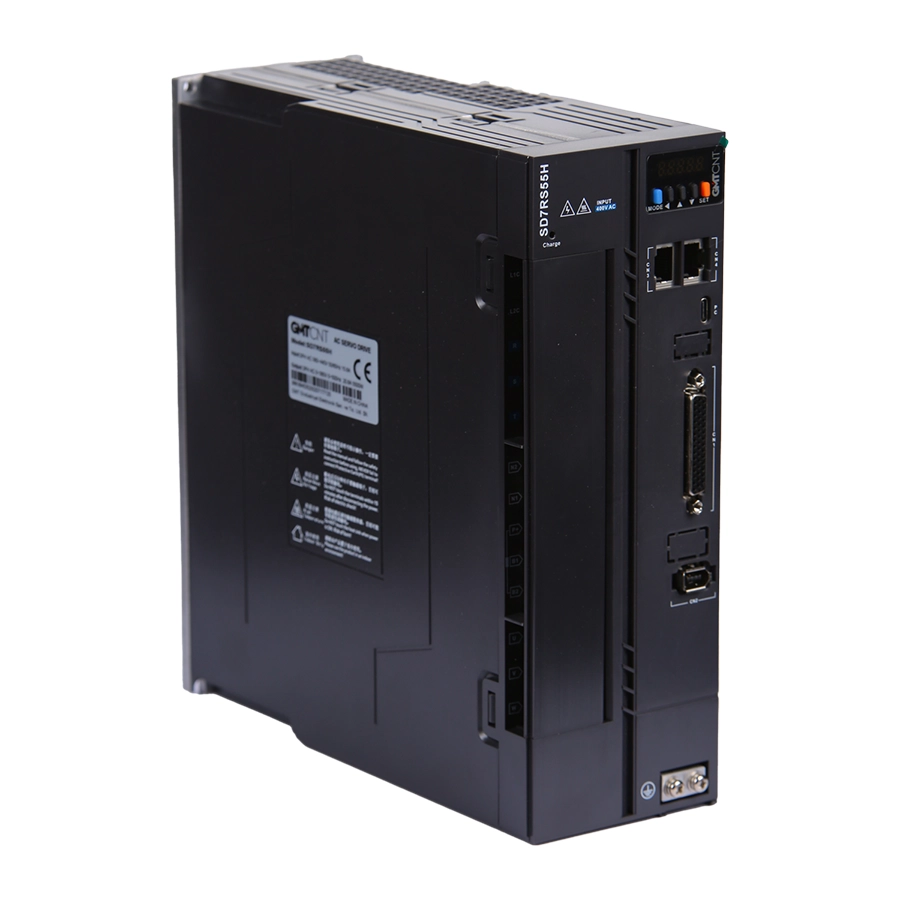

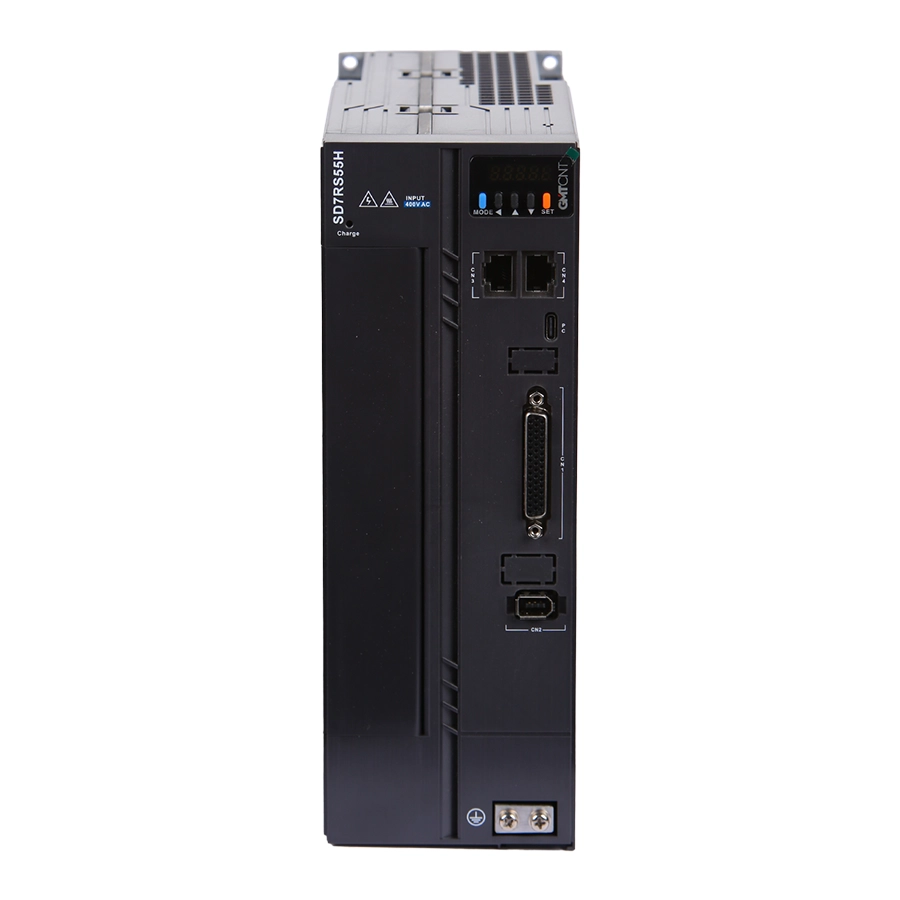

SD7RS55H SERVO DRIVE

SD7 Series Servo Systems offer solutions to machine manufacturers in testing equipment, presses, cutting, filling, packaging, plastics, food, etc., with their compact design, Position/Speed/Torque control modes, and high performance. They are user-friendly with automatic motor recognition, programming via USB port, and the Easytune feature.

User Manual
USB Driver
EtherCAT XML Files
PC Software
3D Drawing File

SD7 Servo Drive Key Features

  • Supply Voltage: Single-phase 380V -15%~+10% 50/60HZ or Three-phase 380V – 400V -15%~+10% 50/60HZ
  • Power Range: 5500W
  • Control Modes: Position/Speed/Torque Control modes
  • Control Mode Switching: Feature to switch between control modes
  • Ease of Adjustment: Easy adjustment, control flexibility
  • Motor Recognition: Automatic motor type detection
  • Communication: Modbus RTU / EtherCAT
  • Encoder: 23bit Absolute Encoder
  • Built-in Brake: Built-in brake resistor
  • Parameter Setting: Parameter setting via PC software or built-in keypad and display
  • Connection: USB Type-C connection port for PC
  • Auto Tuning: Auto Tuning feature
  • Speed Function: Zero speed tracking function
  • Fault Analysis: Black box function for fault analysis
  • Protection Functions: Overcurrent, overvoltage, undervoltage, overtemperature, overload, encoder error, overspeed protection functions

Inputs and Outputs

  • Digital Inputs: 8 Digital inputs
  • Digital Outputs: 5 Digital outputs
  • Pulse Input Frequency: 5V (500kHz) / 24V (200kHz)
  • Analog Inputs: 2 Analog Inputs (-10~+10VDC)
  • Analog Output: 1 Analog Output (-10~+10VDC)
