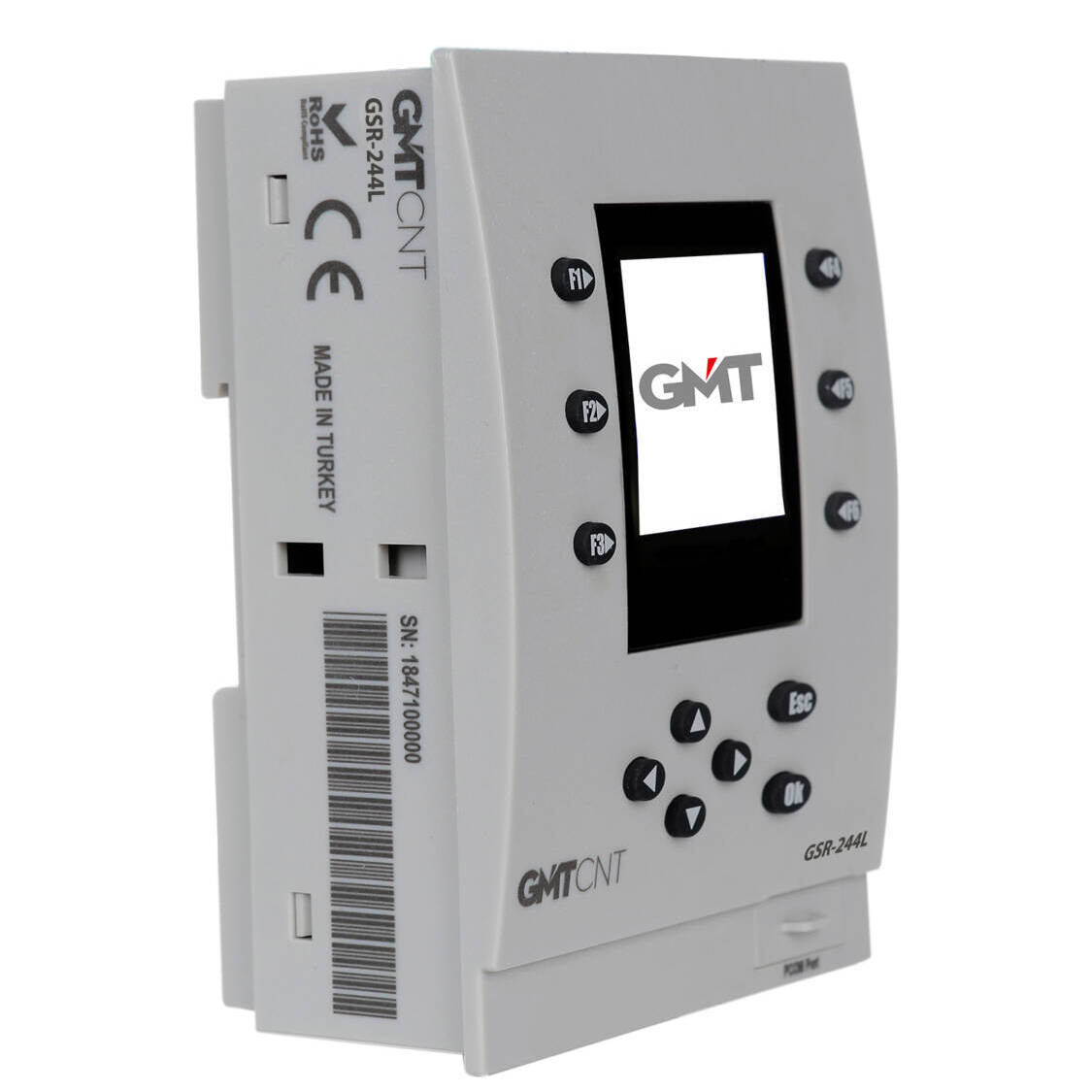

GSR-244L
24 VDC Power Supply
4 Digital (PNP/NPN) Inputs, 1 Load Cell Input
4 Relay Outputs (220 VAC, 5 A), 1 Analog Output (14-Bit)
1 x RS-232 and 1 x RS-485 communication port
Built-in 1.8″ 128 × 160 (RGB) TFT LCD Color Display
Floating-Point Arithmetic Support
196 kB Program Memory / 10 kB Variable Memory
Maximum 20 kHz Program Scan Rate
Reverse Polarity Protection on Power Supply Input
Advanced Weighing Functions Including Gravity Compensation, Automatic Zero Tracking, Manual Zeroing, Tare, Stability Detection, Under/Overload Protection, Two- or Three-Point Load Calibration, and mV/V-Based Equivalent Input Calibration
24-Bit Resolution
500 Samples per Second Sampling Rate
Program Download via USB (with GSR-COM1 Adapter)
Program Download via USB Flash Drive (with GSR-COM2 Adapter)
Built-in RTC (Real-Time Clock)
6 Programmable Function Keys
DIN Rail and Panel Mounting
Programmable with GMTSuite Editor Software
Supply: 24 VDC +/-10% tolerance)
Power Consumption: 3W max.
Program Cycle Speed: Maximum 20 kHz
Programming Language: Graphical Ladder editor
Commands: Logic, mathematical, time and counting relays, special purpose function blocks, display commands
Certification: CE marked
Digital Inputs: 7 Channels Digital (PNP) Input / 2 Channels Thermocouple input
Digital Outputs: 2 Relay Outputs (220 V AC @ 5A) and 4 Transistor Outputs (0.35A @ 24 VDC)
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to 60°C (Non-freezing)
Relative Humidity: 80% up to 30°C, then decreasing linearly to 50% at 50°C
